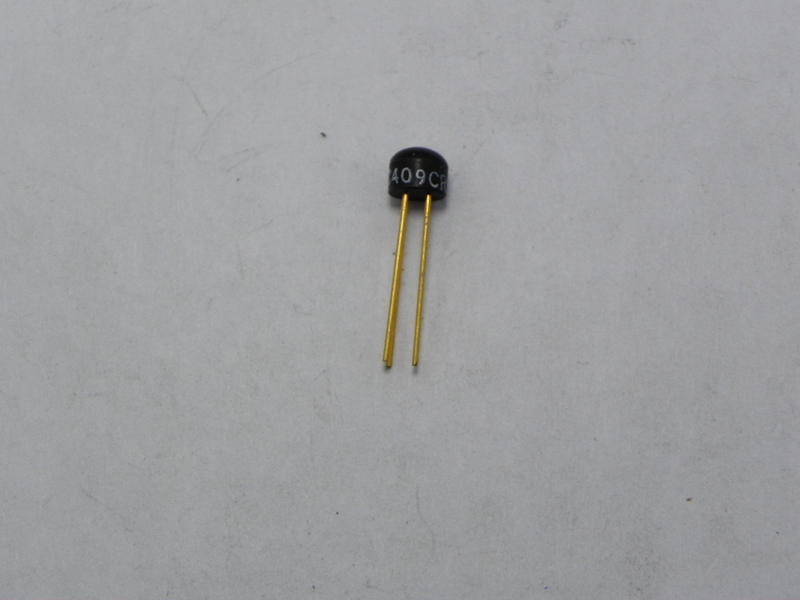

transistor npn BC409C

transistor BC409C

Package : TO106

Transistor Type BJT

Transistor Polarity NPN

Transistor Material Silicon(SI)

Collector Power Dissipation (Maximum) PC 0.25W

Collector-Base Voltage (Maximum) VCB 30V

Collector-Emitter Voltage (Maximum) VCE 20V

Collector Current (Maximum) IC 0.1A

Operating Junction Temperature (Maximum) TJ 125°C

Emitter-Base Voltage (Maximum) VEB 5V

Forward Current Transfer Ratio (hFE Value) 200

Transition Frequency FT 150MHz

Collector Capacitance CC 5pF
